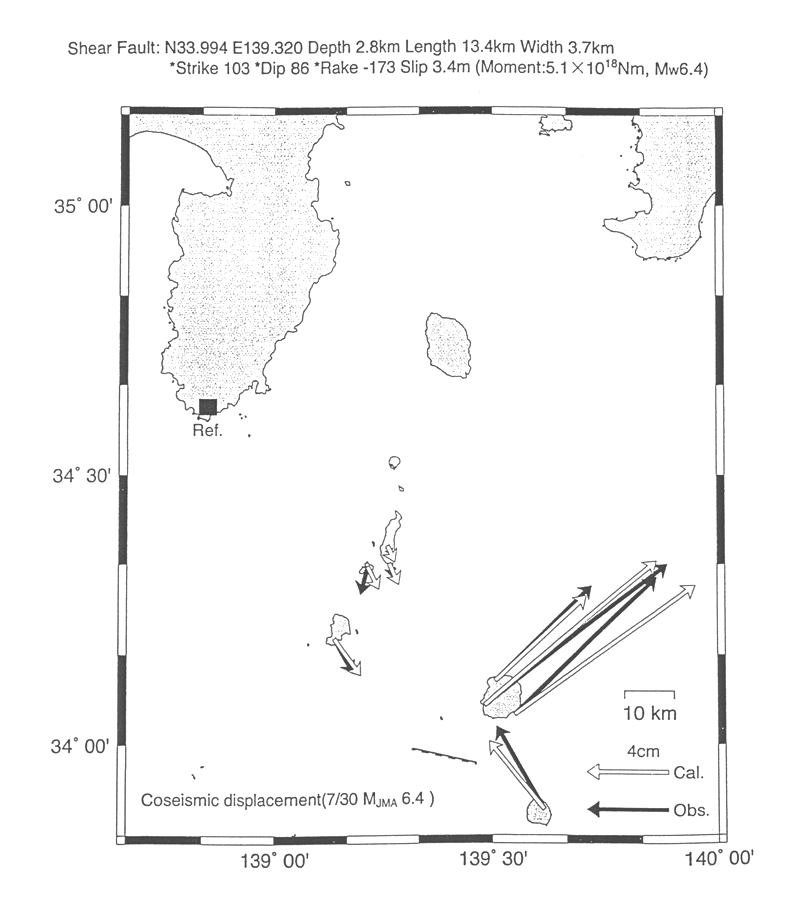

Deviations resulting from the July 30th M6.4 event ? A comparison of modeled and actual GPS data

(Note) The fixed station at Southern Izu 2 (93086) used stations marked by arrows on the map (9 stations X 3 components).
The mechanism of the fault in the July 30th event was determined to be the nodal plane of the northwest strike in the mechanism analysis performed at the Ministry of Science and Technology Disaster Management Research Center.

Geographical Survey Institute

Seismic activity in the area from Miyakejima to Niijima-Kozushima
